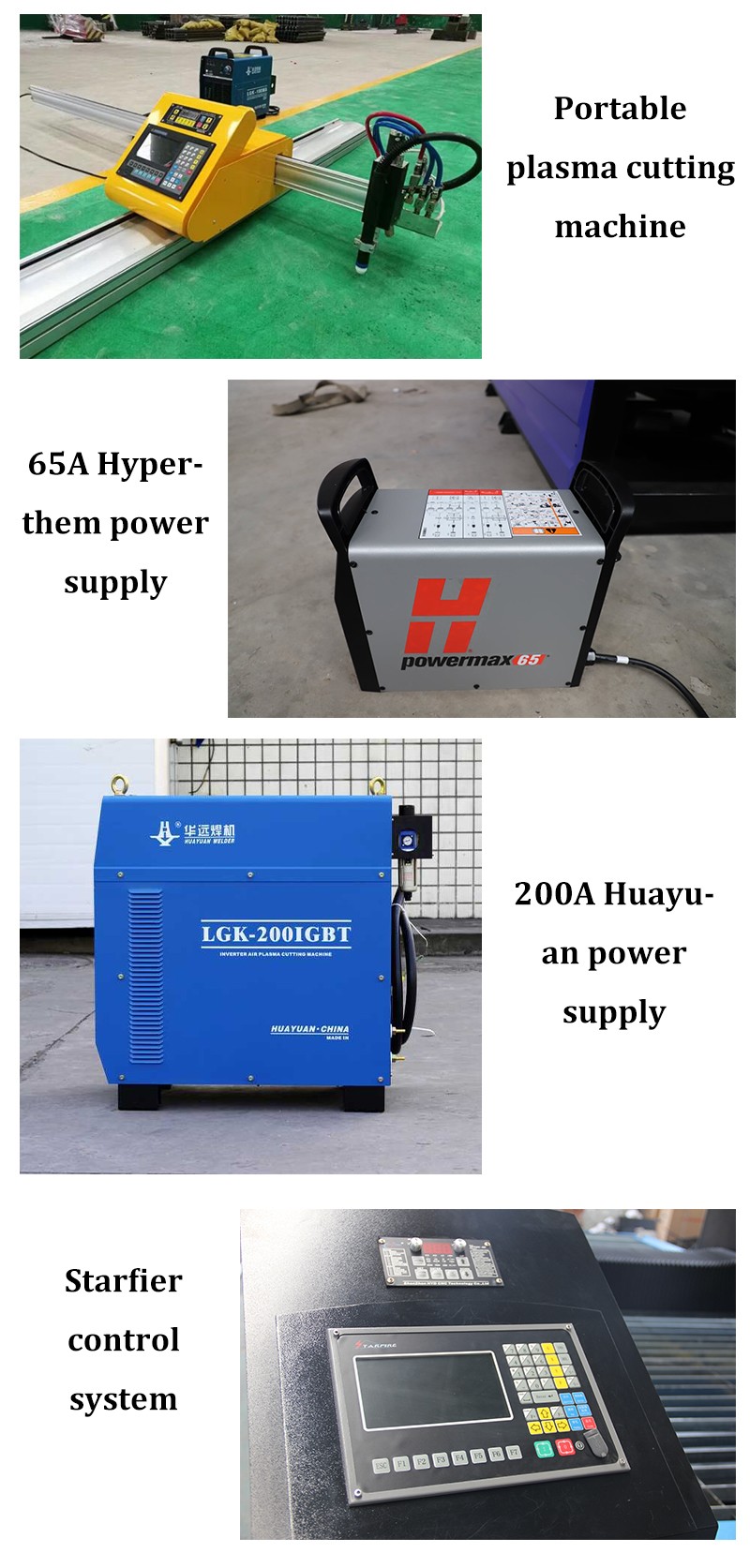

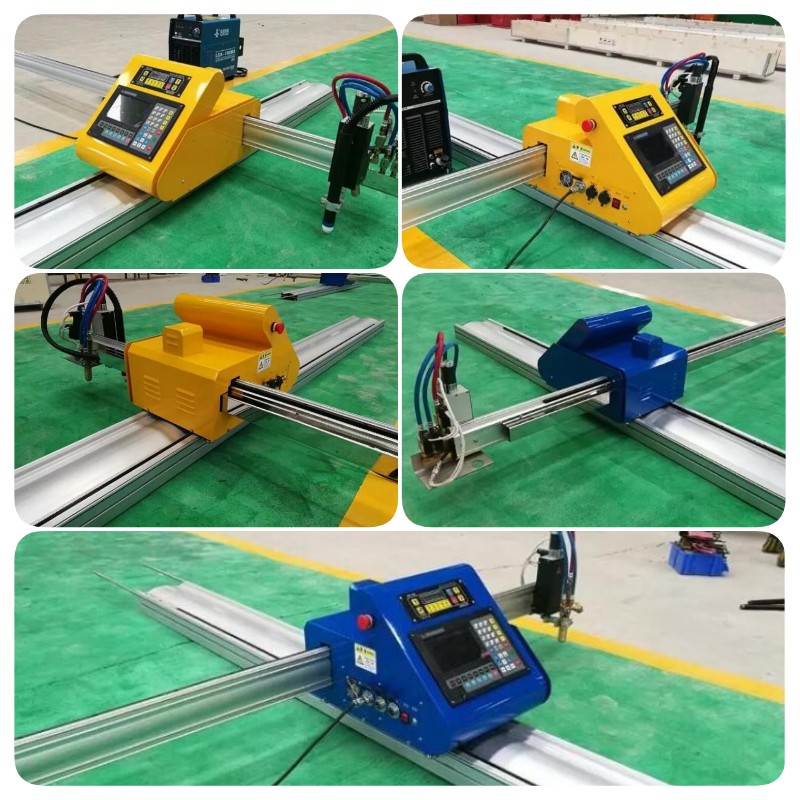

1530 Portable plasma cutting machine

Features:

1) The beam uses light structural design,with good rigidity structure, light deadweight .

2) The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.

3) Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States HYPERTHERM plasma source the machine can reach threshold.

4) Equipped with other advertise equipment (blister/engraving machine) .Improve the efficiency of several times

5) Cutting mouth is small, tidy,and avoid a second dressing processing.

6) It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates , metal plates.

7) The numerical control system disposes high, the automatic striking arc, the performance is stable.

8) Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents.

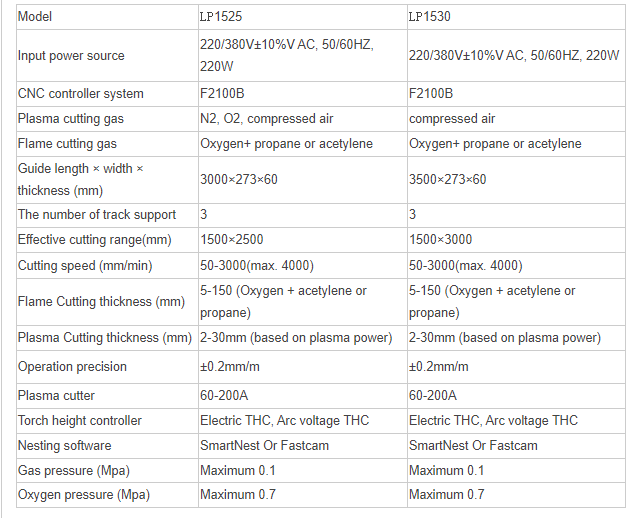

Technical parameter

Machine application

This Portable cnc plasma cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

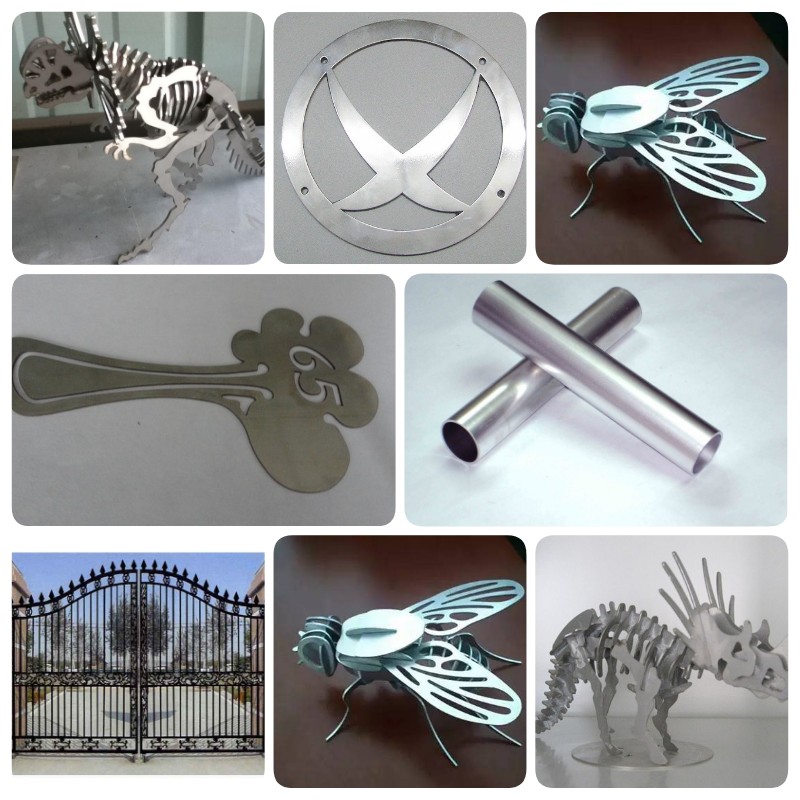

   Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
