Home >> Product >>Co2 Laser Marking Machine >> 10W 20W 30W 40W 50W 55W 60W 100W 120W Non Metal Galvo RF CO2 Laser Marking Machine
Product Detail

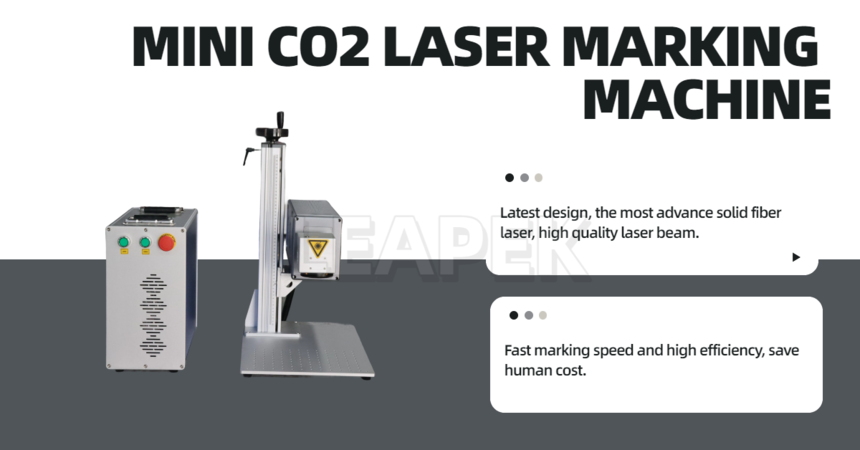

10W 20W 30W 40W 50W 55W 60W 100W 120W Non Metal Galvo RF CO2 Laser Marking Machine

Application Industries:

Glass industry, package industry, sign industry, leather products industry,

wood industry especially for LGP Engraving,Dotting,

LGP LED panel lighting / LED ceiling / TV monitor /

Laptop monitor LED Backlight Panels etc.


Collect

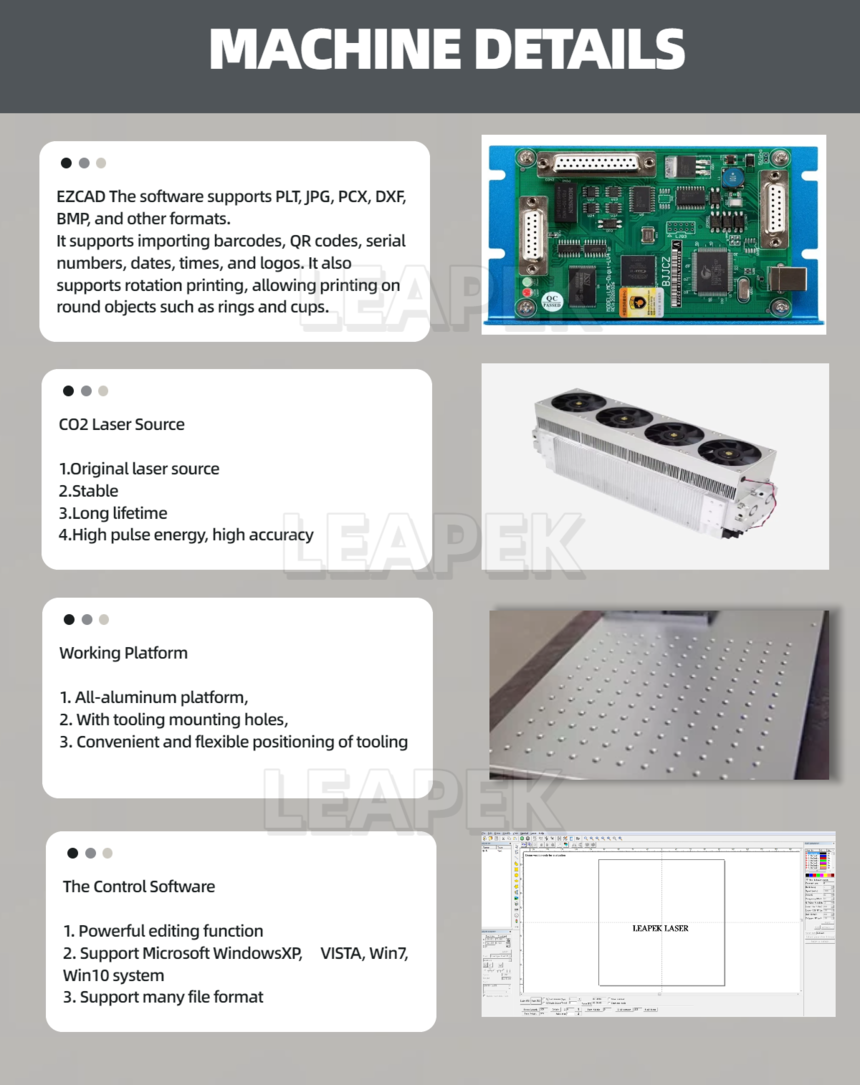

Machine Details:


Machine Details:

No consumables, no maintenance required.

Long service life and small size, suitable for various working environments.

High precision galvanometer can be used for high-speed online flying printing and static printing, which can be flexibly selected.

Simple operation, equipped with humanized operation software, a variety of font choices, a multi-language system can be optional.

Widely used in food and beverage packaging, pharma- ceutical packaging, construction ceramics, craft gifts, rubber products, stone, electronic components, mobile phone shell, PCB bar code, brand label, etc.

Technical Parameter

Laser power

 15W 30W Optional

 Laser source

 Davi Access Synard Optional

 Control board

 BJJCZ

 Control software

 JCZ Ezcad

 Laser lifespan

 20,000 hours

 Laser beam

 10640nm

 Repeat frequency

 ≤100khz

 Marking speed

 0-7000mm/s

 Marking range

 110mm*110mm standard (optional)

 Min.Line

 0.01mm

 Voltage

 AC220V 50Hz

 Cooling mode

 Air cooling/Water cooling

 Cabinet size

 800*600*1400mm

 Supported characters

 Any fonts downloaded on computer

 Supported format

 DWG,DFX,BMP,JPG,PNG,TIF,PCX, TAG, GIF, PLT etc..

 Supported Bar code

 CODE39, EAN, CODE128, Data Matrix, PDF417 etc..


Machine Application:

Application Materials:

The CO2 laser marking machine can work on most of non-metals such as plastic,wood,acrylic,leather, painted glass,paper etc,which is applicable in alcohol and tobacco packing,mainly mark security bar code symbol coding, widely used in ads and crafts, paper cards,hang tags,garment accessories,medicines and other packing industry,electronic components,wood carvings etc. Machine can engrave serial number,picture,logo, random number,bar code,2d barcode and various arbitrary patterns and text.

Application Industries:

Glass industry, package industry, sign industry, leather products industry,

wood industry especially for LGP Engraving,Dotting,

LGP LED panel lighting / LED ceiling / TV monitor /

Laptop monitor LED Backlight Panels etc.


商品参数

JInan Leapek Company mainly produces and sells laser machines and CNC router. Such as laser marking machine, laser welding machine, laser engraving machine, laser welding machine, laser cleaning ma-chine, laser cutting machine and cnc router, wood router. We have CE certificate, and support customize and process laser machines for customers, OEM are welcomed. our laser machines are exported to the whole world. Leapek Laser welcome you visit our company and sincerely looking forward to cooperating with you, much better price, quality and af-tersales service support you. we have very rich experience for in-stalling laser machines, very mature,

quality can guarantee. we are very professional and quality company, choose us will not let you upset:) More details, pls contact us feel free.







Q1: I am new for import, could you pls help me to buy this machine ?

A: Sure, we have rich experience for export, you no need worry for this, we can ship the machine to your address directly

Q2: I am new for this machine, could you pls let me know how to buy?

A: could you pls reply these 2 questions ?

1, what materials you will process ?

2, sizes of materials you will process ?

then i help you choose suitable model for you.

Q3: I do not know how to use the machine, could you help me out ?

A: Sure, we will supply details videos and manual for training

Also have online engineer support for free

Q4: If some problems happen to the machine, what should I do?

A: We provide online services, there is no service validity period, if there are any questions, we can communicate at any time

Q5: Packing ?

A: The machine will be packed with wooden case, standard wooden case can be export or import, not solid wood

Q9: How is the shipping method?

A: can choose ship to your door or sea port or your forwarder
