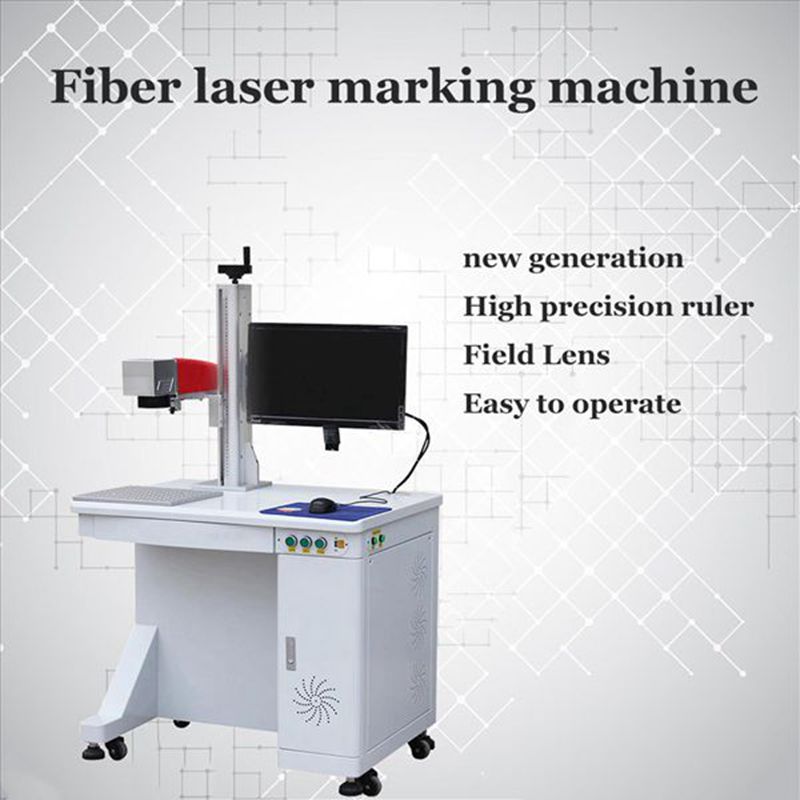

【Free shipping】【Cross border】Fiber laser marking machine for metal and non metal

Field lens
全国
Send inquiry
8615628788090
Collect
  • Machine details
  • FAQ




Fiber laser type
Pulse fiber laser 30w
Max Single pulse energy
1mj
Pulse duration
90-130ns
Laser beam quality M2
<1.8
Frequency
30-60khz
Wavelength
1064nm
Marking Area
110mm×110mm(optional)
Spot size
27.5μm
Max marking speed
8μrad
Min. linear width
0.01mm
Min. Character size:
0.2mm
Repetition Accuracy
0.005mm

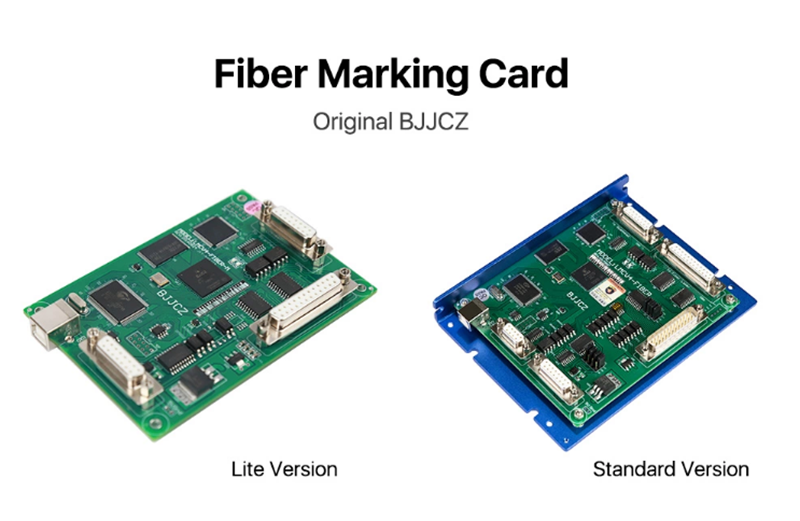

Control program
Genuine EZCAD control system Compatible with win7/8/10
Graphic format supported
Jpg,Bmp,dxf,plt
working voltage:
AC220V 50HZ/AC110V 60HZ
Cooling type
Air cooling
Operating parameter
0-40℃
Power consumption
≦500w

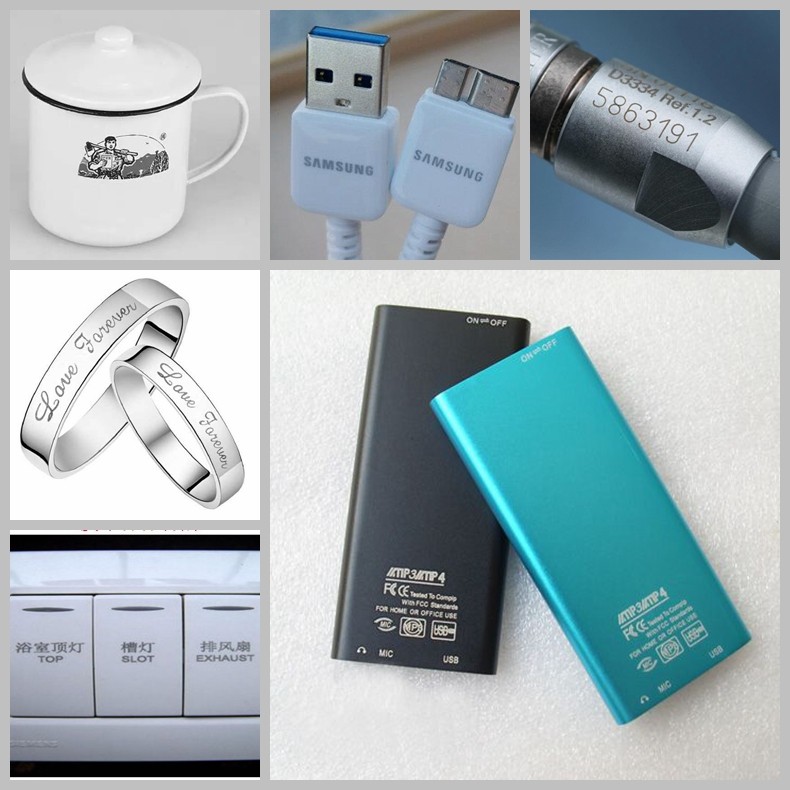

Application:

1).Materials:

Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )

Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits,mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)

2).Industry:

Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock,Cooker, Stainless steel products etc.


After-sale Service

Before delivering the machine, we will test and adjust it, so you can use it directly when you get it.

* If you have problems while using, 24hours online professional advice available.

Lifetime software free upgrades.

* Fiber laser source we warranty for 1 year ,the other parts warranty for 2 years.




 FAQ

Q1.how to get the most suitable machine and best price

please tell the material you want to working on?How to working on it ? Engraving ? Cutting ? Or other ? Whats the MAX size of these material ?( length ? Width ? Thickness ?)

Then we will supply you 2-3 solution for advice.

Q2.What is the payment?

The payment is 30% or 50% T/T  in advance,the balance prior to the shipment.

Q3.What is the producing time after order?

The production time is about 10 days depend on the exact machine and the quantity.

Q4.If we don't know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or what’sapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The

complete machine will be tested to make sure they can work very well before being out of factory.The testing video and pictures will be sent to you before the delivery.
