desktop fiber laser marker 20w jpt M1 laser

Field lens: 全国

Collect

Machine details

Machine Feature

1. JPT M1 LASER SOURCE: JPT M1+ series Show excellent laser performance the pulse repetition frequency (PRF)and pulse width can be controlled independently in MOPA configuration, JPT laser suitable for more material processing which Q-switch limited

2. BJJCZ: Quality Genuine EZCAD control board and program(BJJCZ brand) which support XP WIN7 /8 /10 32/64 bit operating system

3. GALVOTECH HEAD: we use the GALVOTECH brand head,High accuracy and speed, support for ultra-low drift

4.WAVELENGTH:High quality Wavelength tech optical lens,we have optional size:75*75mm,110*110mm

150*150mm,200*20mm,250*250mm,300*300mm,you can choose one suitable size according to your needs.

Machine advantages

1.Low running cost
2 .Small size, one unit structure and user-friendly operation.
3. High quality laser beam M2<1.3.
4.More width pulse repetition 1-1000KHZ
5.Maintenance-free and 100 000 hours long life time.
6. Quality Taiwan made mean well power supply
7.More advanced mopa fiber laser
8. High speed precision digital Galvotech scan head.
9. Genuine EZCAD control program compatible with win7/win8/win10
10. Whole machine warranty 2 years
11. Fast after sales service with remote control help set up machine step by step.

Application Advantages

Metal surface processing, peeling coating

Aluminum black marking

Semi-conductor&electronics industry applications

Large area engraving

Excellent marking effect on plastic or other sensitive material

Black marking on stainless steel

Technical parameter

Fiber laser type	Pulse fiber laser
Wavelength	1064nm
Max Single pulse energy	0.67mj
Pulse duration	6-250khz
Laser beam quality M2	<1.5
Frequency	1-1000KHZ
Marking Area	110mm×110mm(optional)
Spot size	43μm
Marking Depth	0.03—0.08mm
Max position speed	8000mm/s
Min. linear width	0.01mm
Min. Character size:	0.2mm
Repetition Accuracy	0.005mm
Control program	Genuine EZ-CAD control system Compatible with win7/8/10
Graphic format supported	Jpg,Bmp,dxf,plt
working voltage:	AC220V 50HZ /AC110V 60HZ
Cooling type	Air cooling
Operating parameter	0-40℃
Packing size	754780cm
Gross weight	70kg
Power consumption	≦500w

Application materials

Stainless	√
Coated Metals	√
Brass	√
Copper	√
Gold	√
Silver	√
Titanium	√
Bare Metals	√
Ruber	√
PP	√
PS	√
ABS	√
PVC	√
PE	√

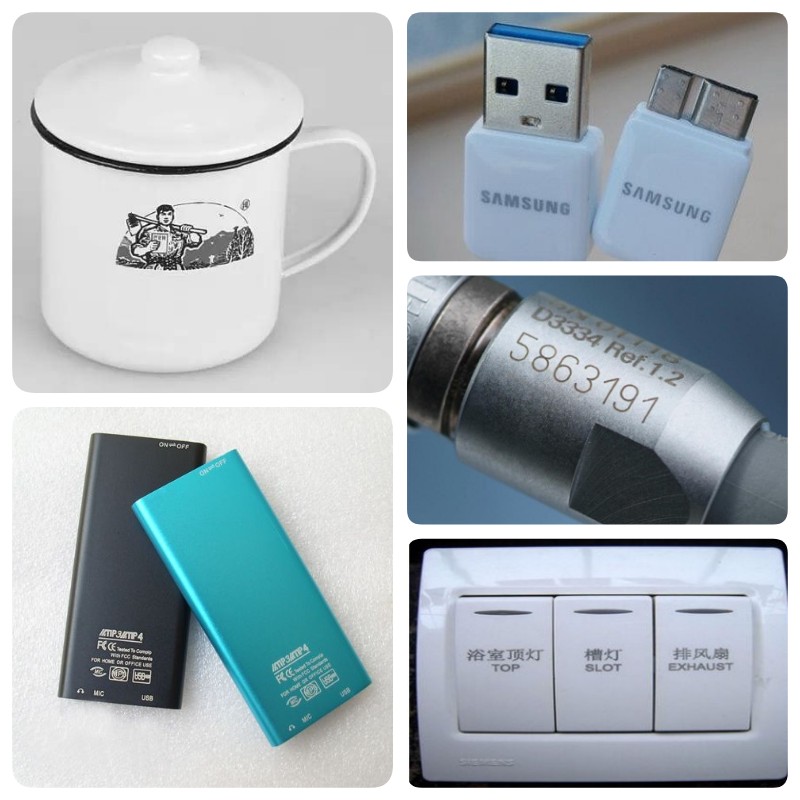

Application industry

Application industry	Electrical Engineering and Electrical part and component
	Mobile (Cover,battery,keyboard, I Phone Case)
	Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
	Building materials, PVC pipe
	Car motor car spare part
	Insturment and meters and cutting tool
	plastic case
	hardware fitting and accessory
	sanitary appliance
	food and beverage
	Medicine package and medical instrument
	solar Photoelectrical PV industry

FAQ

Q.How to get the most suitable machine and best price?

1)Please tell the material you want to working on ?

2)How to working on it ? Engraving ? Cutting ? Or other ?

3)What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q.If we do not know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need tobear some fee,like tickets and hotel and meal.

Q.How about your after-sales service?

We offer you 24 hours service phone,skype or MSN.

Q.Quality control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.The testing video and pictures will be available before delivery.
